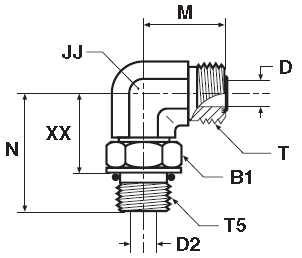

C5OMLO Фитинг ввертной угловой регулируемый Труба O-Lok® ORFS / Наруж. резьба UN/UNF – Уплотн. кольцо (ISO 11926), SAE 520220
| Наруж. диам. трубы |
Резьба UN/UNF-2A T5 |
Резьба UN/UNF-2A T |
B1, мм |
D, мм |
D2, мм |
JJ, мм |
M, мм |
N, мм |
XX, мм |
Вес (сталь), г/шт |
O-Lok® Сталь |
O-Lok® Нерж. сталь |
PN (бар) |
Штук |
| мм |
дюйм |
S |
SS |
| 6 |
1/4 |
7/16-20 |
9/16-18 |
16 |
5 |
5 |
14 |
22 |
33 |
22 |
53 |
4 C5OLO-S |
4C5OMLOSS |
420 |
420 |
|
| 6 |
1/4 |
9/16-18 |
9/16-18 |
19 |
5 |
8 |
19 |
24 |
37 |
25 |
66 |
4-6C5OMLOS |
4-6C5OMLOSS |
420 |
420 |
|
| 6 |
1/4 |
3/4-16 |
9/16-18 |
24 |
5 |
10 |
19 |
25 |
41 |
27 |
67 |
4-8 C5OLO-S |
4-8C5OMLOSS |
420 |
420 |
|
| 8, 10 |
5/16, 3/8 |
9/16-18 |
11/16-16 |
19 |
7 |
8 |
19 |
25 |
37 |
25 |
68 |
6C5OMLOS |
6C5OMLOSS |
420 |
420 |
|
| 8, 10 |
5/16, 3/8 |
7/16-20 |
11/16-16 |
16 |
7 |
5 |
19 |
25 |
35 |
24 |
57 |
6-4 C5OLO-S |
6-4C5OMLOSS |
420 |
420 |
|
| 8, 10 |
5/16, 3/8 |
3/4-16 |
11/16-16 |
24 |
7 |
10 |
19 |
27 |
41 |
27 |
105 |
6-8C5OMLOS |
6-8C5OMLOSS |
420 |
420 |
|
| 8, 10 |
5/16, 3/8 |
7/8-14 |
11/16-16 |
27 |
7 |
12 |
22 |
29 |
50 |
34 |
196 |
6-10 C5OLO-S |
6-10C5OMLOSS |
420 |
420 |
|
| 8, 10 |
5/16, 3/8 |
1 1/16-12 |
11/16-16 |
36 |
7 |
16 |
27 |
33 |
55 |
37 |
250 |
6-12 C5OLO-S |
6-12C5OMLOSS |
420 |
420 |
|
| 12 |
1/2 |
3/4-16 |
13/16-16 |
24 |
10 |
10 |
19 |
28 |
41 |
27 |
164 |
8C5OMLOS |
8C5OMLOSS |
420 |
420 |
|
| 12 |
1/2 |
9/16-18 |
13/16-16 |
19 |
10 |
7 |
19 |
28 |
37 |
25 |
81 |
8-6 C5OLO-S |
8-6C5OMLOSS |
420 |
420 |
|
| 12 |
1/2 |
7/8-14 |
13/16-16 |
27 |
10 |
13 |
27 |
31 |
50 |
34 |
187 |
8-10C5OMLOS |
8-10C5OMLOSS |
420 |
420 |
|
| 12 |
1/2 |
1 1/16-12 |
13/16-16 |
36 |
10 |
15 |
30 |
36 |
55 |
37 |
201 |
8-12 C5OLO-S |
8-12C5OMLOSS |
420 |
420 |
|
| 14, 15, 16 |
5/8 |
7/8-14 |
1-14 |
27 |
13 |
13 |
27 |
33 |
50 |
34 |
214 |
10C5OMLOS |
10C5OMLOSS |
420 |
420 |
|
| 14, 15, 16 |
5/8 |
3/4-16 |
1-14 |
24 |
13 |
10 |
27 |
33 |
46 |
32 |
175 |
10-8 C5OLO-S |
10-8C5OMLOSS |
420 |
420 |
|
| 14, 15, 16 |
5/8 |
1 1/16-12 |
1-14 |
35 |
13 |
16 |
30 |
36 |
55 |
37 |
248 |
10-12 C5OLO-S |
10-12C5OMLOSS |
420 |
420 |
|
| 18, 20 |
3/4 |
1 1/16-12 |
1 3/16-12 |
36 |
16 |
16 |
30 |
37 |
55 |
37 |
442 |
12C5OMLOS |
12C5OMLOSS |
420 |
420 |
|
| 18, 20 |
3/4 |
3/4-16 |
1 3/16-12 |
24 |
16 |
10 |
30 |
37 |
47 |
33 |
325 |
12-8C5OMLOS |
12-8C5OMLOSS |
420 |
420 |
|
| 18, 20 |
3/4 |
7/8-14 |
1 3/16-12 |
27 |
16 |
13 |
30 |
37 |
51 |
35 |
296 |
12-10C5OMLOS |
12-10C5OMLOSS |
420 |
420 |
|
| 18, 20 |
3/4 |
1 5/16-12 |
1 3/16-12 |
41 |
16 |
22 |
36 |
41 |
60 |
41 |
346 |
12-16 C5OLO-S |
12-16C5OMLOSS |
380 |
380 |
|
| 22, 25 |
1 |
1 5/16-12 |
1 7/16-12 |
41 |
21 |
21 |
37 |
42 |
60 |
38 |
502 |
16C5OLO-S |
16C5OMLOSS |
380 |
380 |
|
| 22, 25 |
1 |
1 1/16-12 |
1 7/16-12 |
35 |
21 |
16 |
37 |
42 |
59 |
40 |
473 |
16-12 C5OLO-S |
16-12C5OMLOSS |
420 |
420 |
|
| 22, 25 |
1 |
1 5/8-12 |
1 7/16-12 |
48 |
21 |
26 |
41 |
45 |
62 |
44 |
580 |
16-20 C5OLO-S |
16-20C5OMLOSS |
280 |
280 |
|
| 28, 30, 32 |
1 1/4 |
1 5/8-12 |
1 11/16-12 |
48 |
26 |
26 |
41 |
45 |
62 |
44 |
563 |
20 C5OLO-S |
20C5OMLOSS |
280 |
280 |
|
| 28, 30, 32 |
1 1/4 |
1 5/16-12 |
1 11/16-12 |
41 |
26 |
22 |
41 |
45 |
62 |
43 |
563 |
20-16C5OMLOS |
20-16C5OMLOSS |
380 |
280 |
|
| 28, 30, 32 |
1 1/4 |
1 7/8-12 |
1 11/16-12 |
54 |
26 |
32 |
48 |
49 |
66 |
47 |
764 |
20-24 C5OLO-S |
20-24C5OMLOSS |
280 |
280 |
|
| 35, 38 |
1 1/2 |
1 7/8-12 |
2-12 |
54 |
32 |
32 |
48 |
49 |
66 |
47 |
689 |
24 C5OLO-S |
24C5OMLOSS |
280 |
280 |
|
| 35, 38 |
1 1/2 |
1 5/8-12 |
2-12 |
48 |
32 |
26 |
48 |
49 |
66 |
47 |
644 |
24-20 C5OLO-S |
24-20C5OMLOSS |
280 |
280 |
|
| 50 |
2 |
2 1/2-12 |
2 1/2-12 |
70 |
45 |
40 |
64 |
70 |
78 |
59 |
2200 |
32 C5OLO-S |
32C5OMLOSS |
170 |
170 |
|
O-Lok® поставляется с эластомерным уплотнителем из NBR в стандартной комплектации
Дюймовые и метрич. компоненты могут различаться по размерам шестигранника.
PN (бар) / 10 = PN (МПа)
Номинальное давление – PN, для версий из стали и нерж. стали.
|
